Mapping connects each Rubii placement to the line items, campaigns and other items on your advertising platforms, so Rubii can bring in their delivery, spend and conversion data. You can map items by hand on a placement's mapping screen, or let Rubii map them for you automatically using the placement's Map ID.
Before you start
An item only shows up for mapping when all of the following are true:
- The campaign has been approved. Mapping isn't available while a campaign is still a draft: the mapping icon is there but won't open. Click Approve Draft at the bottom of the campaign's placements page first.
- The platform is connected and linked to the advertiser. The platform must be connected to Rubii, and the platform's advertiser account must be linked to the Rubii advertiser. To link it, open the advertiser, go to the Mapping tab, and click the platform advertiser on the left. If a platform advertiser isn't linked, none of its line items appear.
- The dates overlap. Only line items whose dates overlap the placement's dates are listed.
- The line item is active. Inactive line items can't be mapped.
- It isn't already mapped to another placement for the same dates. A line item can belong to only one placement at a time when their dates overlap. If you try to map it to a second one, Rubii shows which placement it's already mapped to. Unmap it there first.
Map line items manually
Manual mapping gives you direct control over which platform items feed each placement.

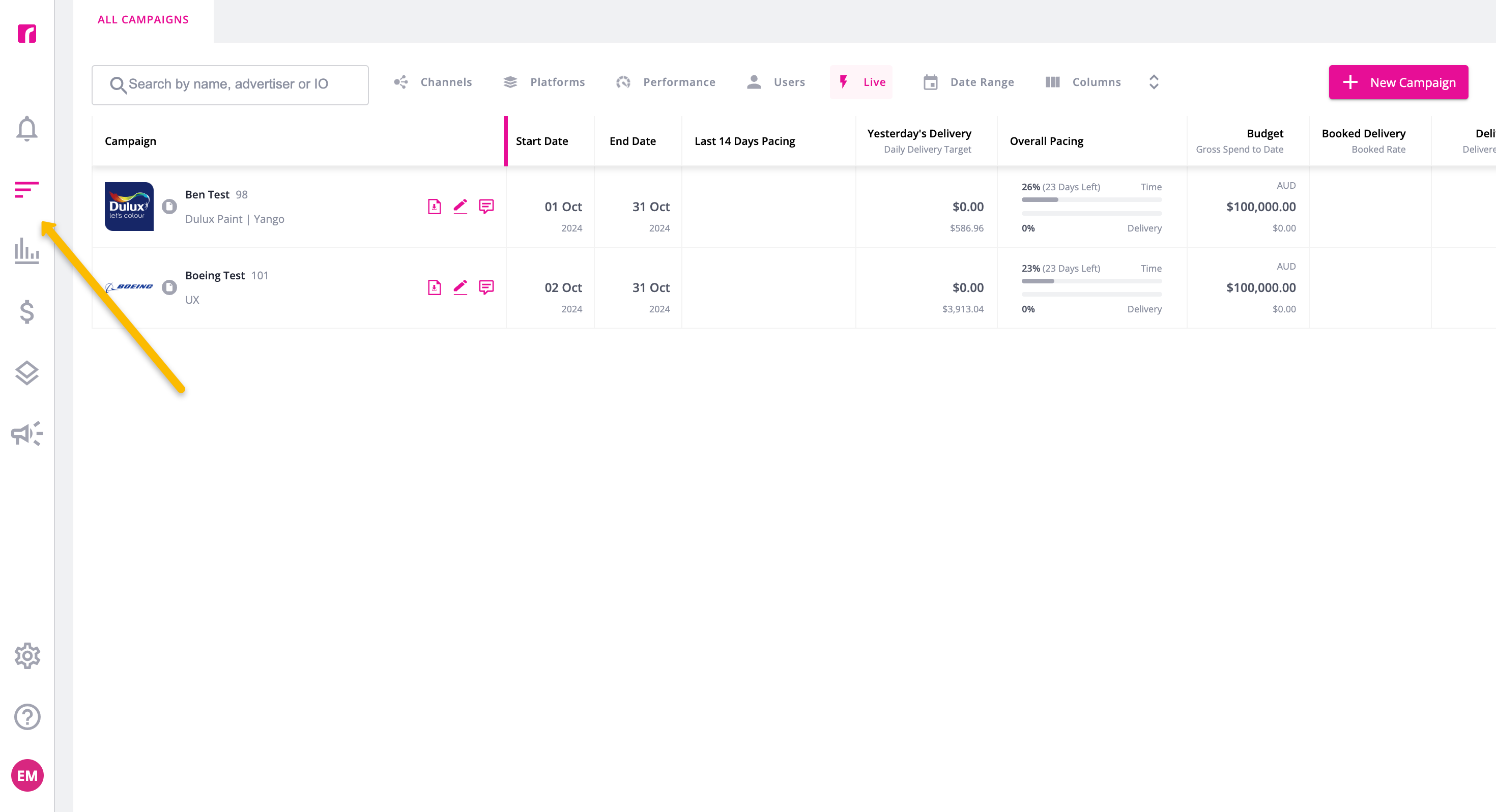

- Log in to Rubii and select Tracker in the left-hand panel.

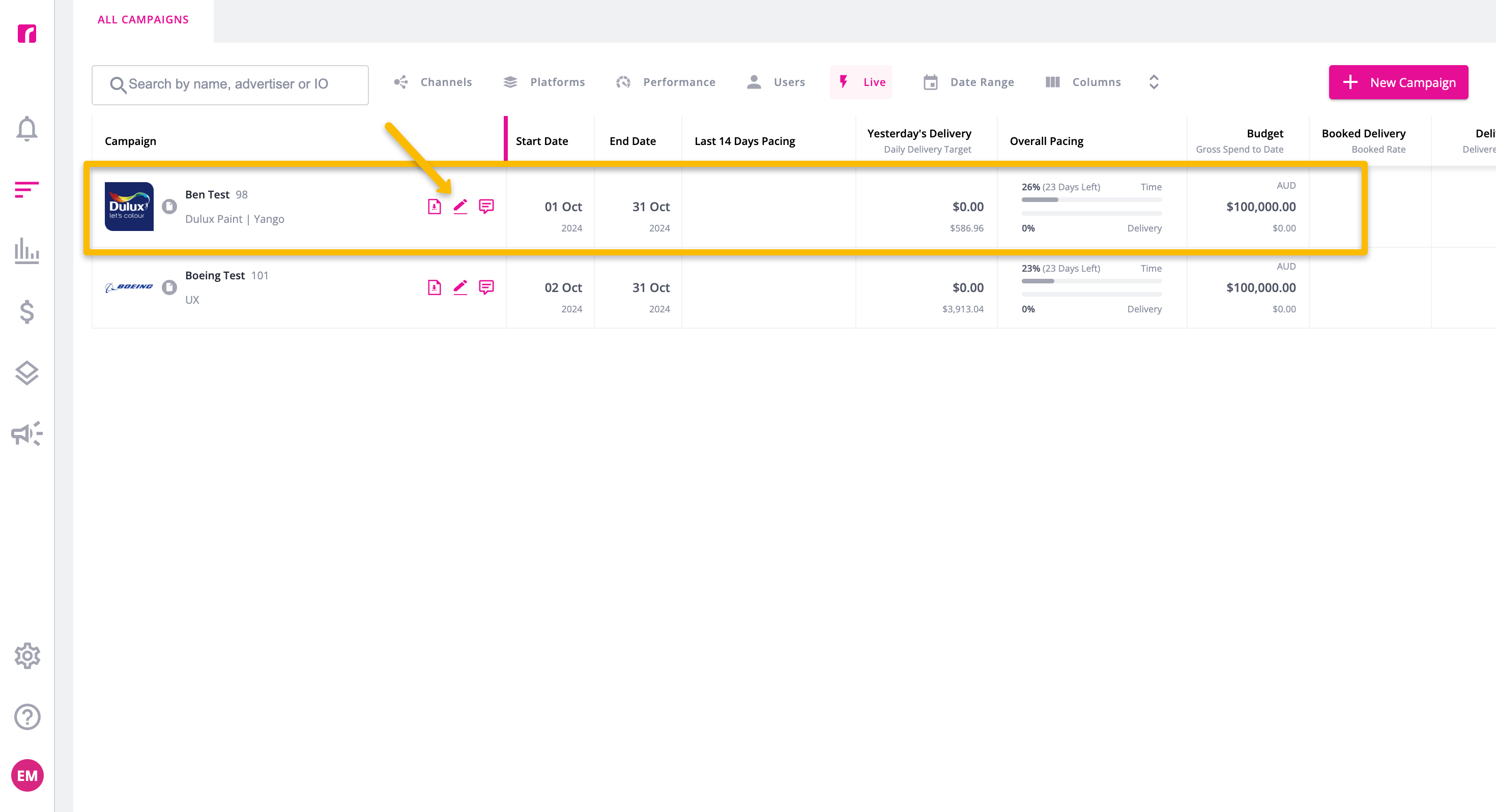

- Find the campaign you want to work on and click its Edit (pencil) icon to open its placements page.

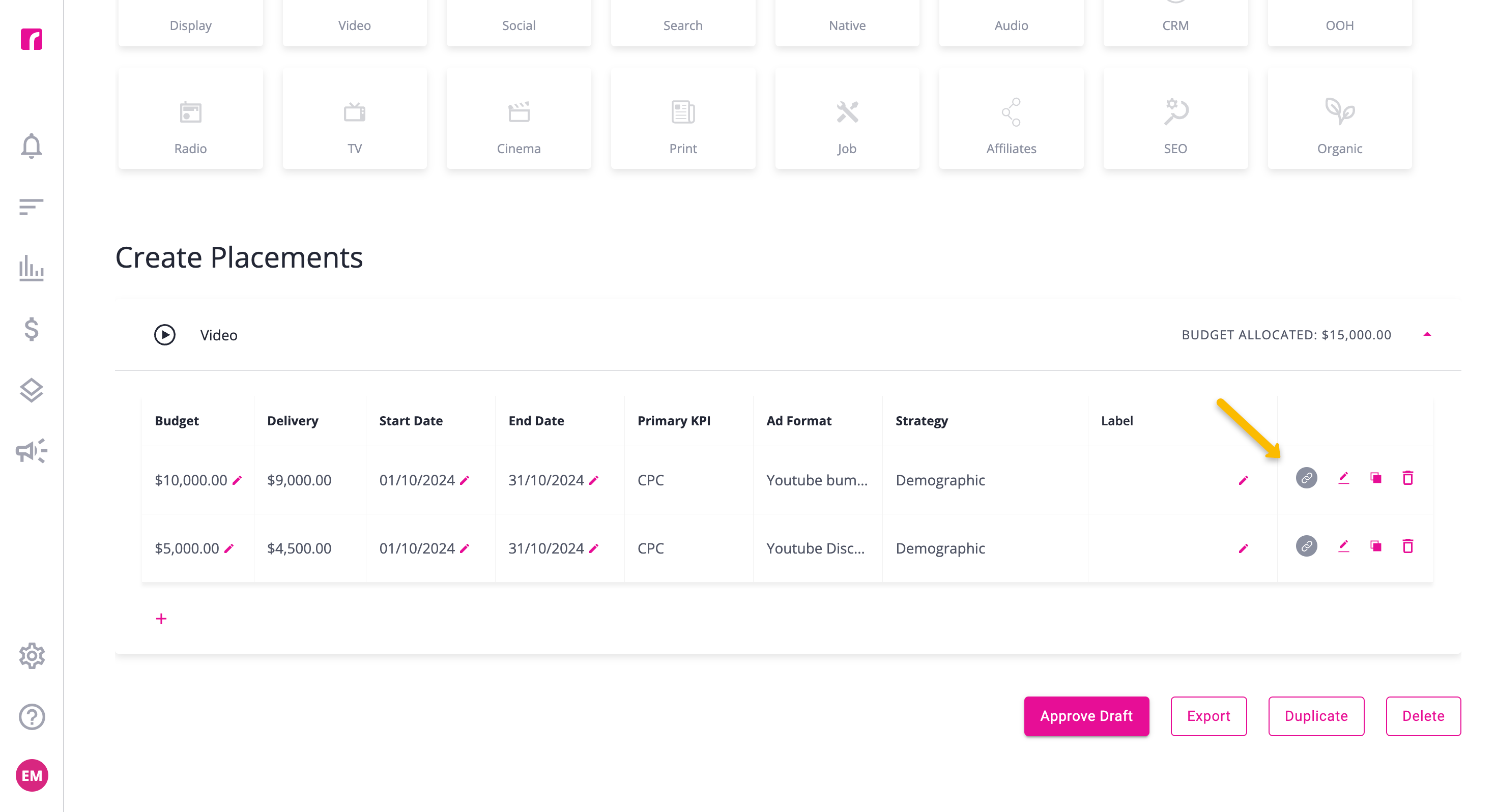

- On the placements page, find the placement you want to map and click the Map icon on the right of its row.

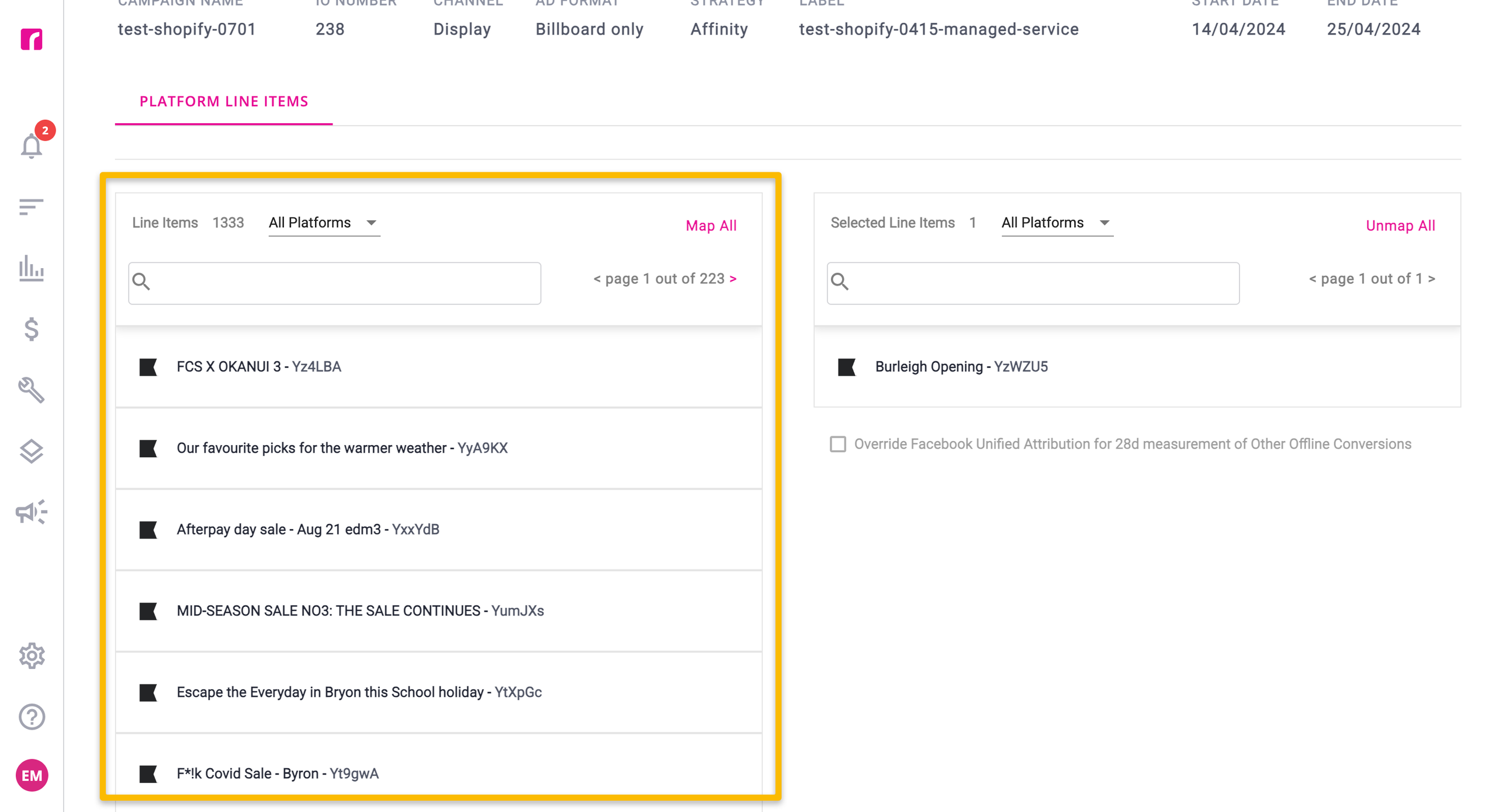

- On the PLATFORM tab, click the line items on the left to map them to the placement. They move to the right-hand column.
On the mapping screen you can also:
- Map everything at once: click Map All. Before it saves, Rubii checks whether any of the items are already mapped to another placement with overlapping dates and flags them so you can decide.
- Unmap an item: click it in the right-hand column. Unmapped items won't be mapped back to this placement automatically, but you can still map them again by hand.
- Narrow a long list: use the platform dropdown at the top of each column.
Note: A placement's spend and revenue are the total across every line item mapped to it. If a placement's figures look higher than the platform shows for one campaign, check its mapped line items and unmap any that don't belong.
Search placements
Search platforms such as Google Ads, Search Ads 360 and Microsoft Advertising are mapped at the campaign level rather than line by line. For a placement on the Search channel, use PLATFORM CAMPAIGNS on the mapping screen. A Search placement can only be mapped to campaigns from search platforms.
Ad server, analytics and conversions
The same mapping screen has two more tabs:
- AD SERVER: map ad server placements under AD SERVER PLACEMENTS and conversion activities under AD SERVER ACTIVITIES, where you can mark a primary and a secondary activity.
- ANALYTICS: map a Google Analytics property under GA PROPERTY & VIEW, add UTM traffic sources under GA TRAFFIC SOURCES (Add Rows, or Bulk Add to paste many), and map goals.
To set up conversions for a platform, map that platform's line items first. Its conversion tab only appears once something from that platform is mapped.
Map automatically with a Map ID
Every placement can have a Map ID. If a line item's name, or the name of the campaign it belongs to, contains a placement's Map ID, Rubii maps that line item to the placement automatically. There's no need to repeat the manual steps for each new campaign. Ad server placements whose names contain the Map ID are picked up the same way.
Set up auto-mapping
- Create the campaign and its placements in Rubii, and approve the campaign. Auto-mapping doesn't run for draft campaigns.

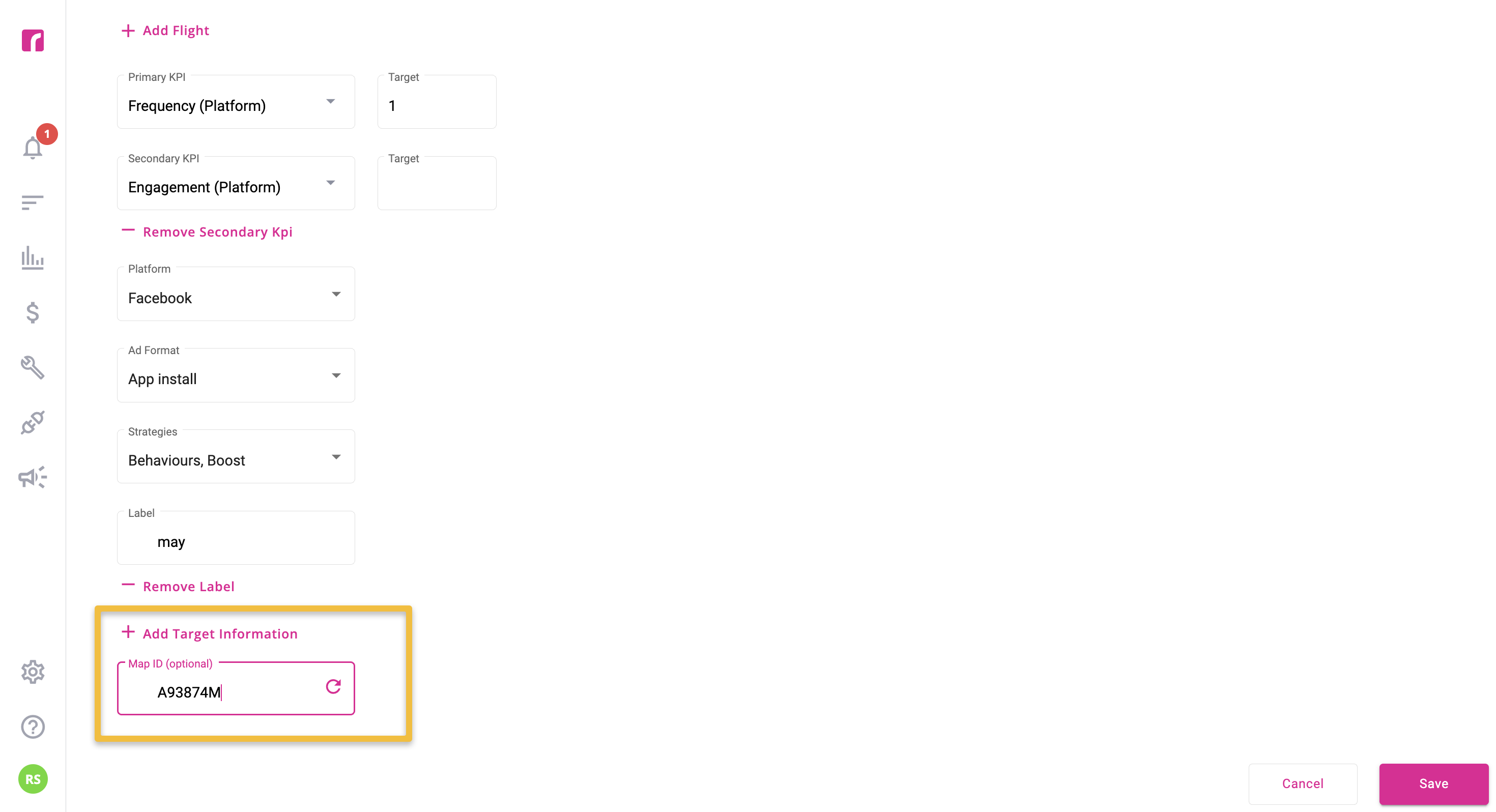

- Find each placement's Map ID.
- Add the Map ID to the name of the matching line item or campaign on the platform. For Google Ad Manager, add it to the line item name, not the order name, because a Map ID on the order name maps every line item in that order to the placement.
- Wait for Rubii to pick it up. Auto-mapping runs automatically on a schedule, provided the platform is connected and its line item dates overlap the placement's dates.
Tips for auto-mapping
- A Map ID can be reused on another placement for the same advertiser, as long as the two placements' dates don't overlap. This is useful for monthly placements. Rubii won't let you save a placement whose Map ID is already used by one of the advertiser's placements with overlapping dates. The error names the conflicting placement.
- Match the Map ID exactly. The Map ID in the platform name must match the one in Rubii.
- If you rename a campaign on the platform, the new name, including any Map ID you added, only reaches Rubii at its next sync of that campaign. Until then, auto-mapping still works from the old name.
- Unmapped items stay unmapped. If you unmap an auto-mapped line item from a placement, auto-mapping won't add it back to that placement. It can still be mapped to other placements.
- A line item already mapped to another placement can still be picked up by auto-mapping for a different placement whose dates it overlaps. Check both placements if a line item's data appears twice.
A note on dates
Rubii only reports a placement's data for dates inside the placement's date range. If data stops after a certain date, check the placement's end date and extend it (and its flight) if needed.
